¶ BLDC motor characteristic list
For further information on the motor model can be found at telega.zubax.com.

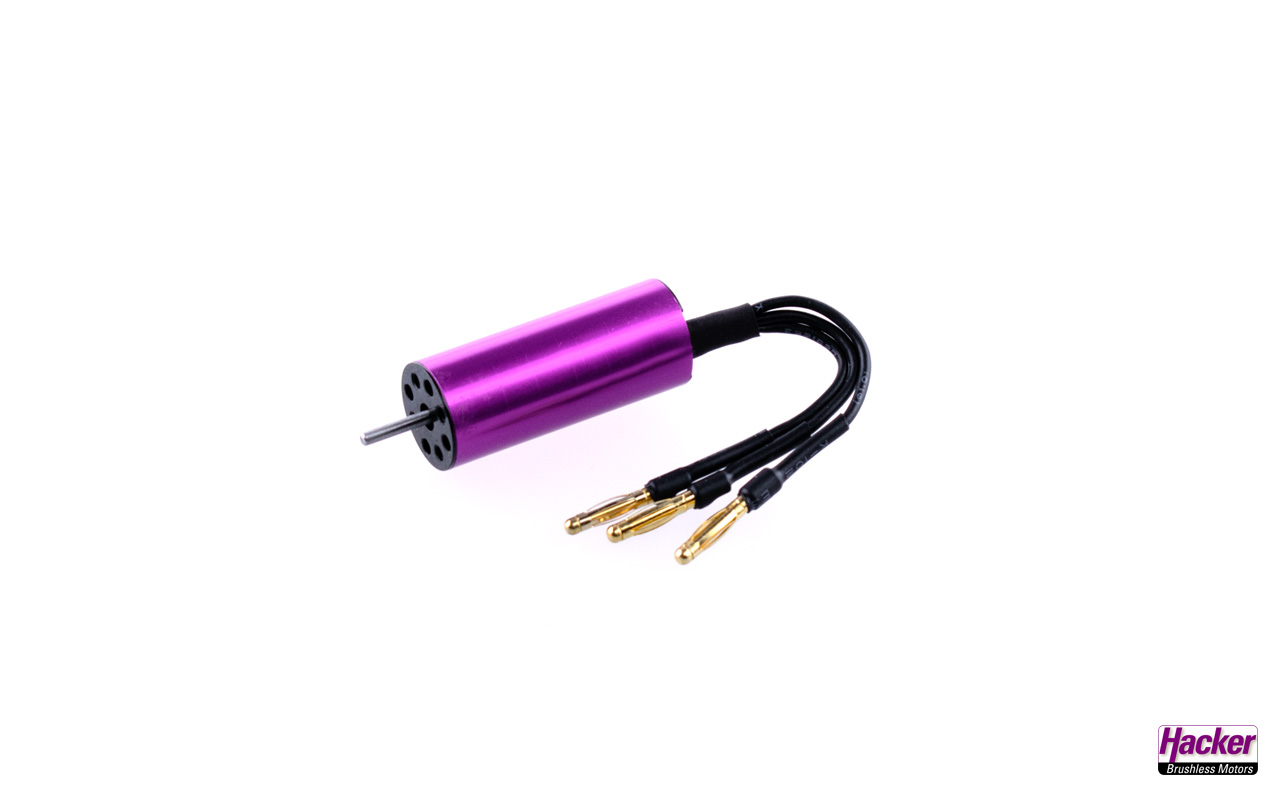

¶ Hacker E10-36L kv4300
motor.current_ctl_bwr: 0.03999999910593033
motor.current_max: 10.0
motor.current_ramp: 5000.0
motor.flux_linkage: 0.0012779415119439363
motor.inductance_dq: [5.177514140086714e-06, 5.177514140086714e-06]
motor.mechanical_ratio: 1
motor.resistance: 0.5012267827987671
motor.thermistor_v2k: [0.0, 0.0, 0.0]
motor.voltage_ramp: 20.0

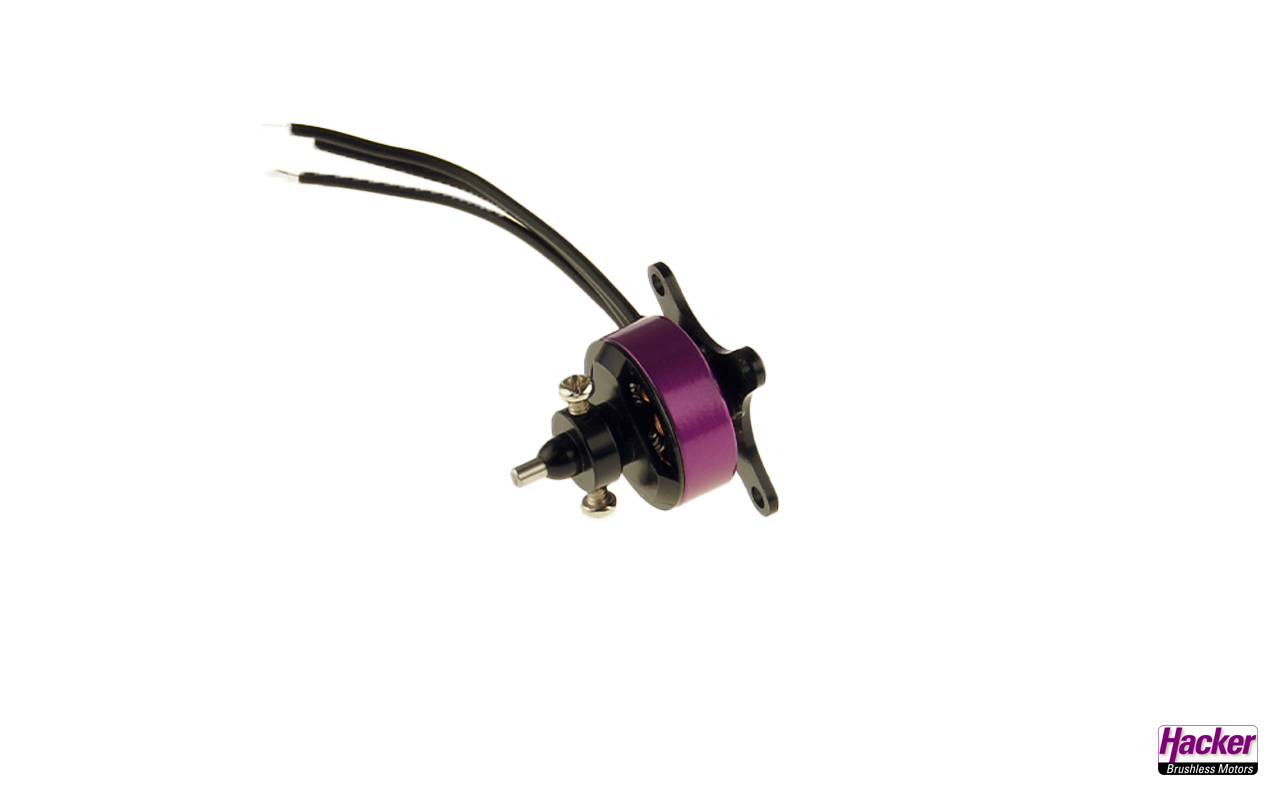

¶ Hacker A05-13S kv3200
n.a.

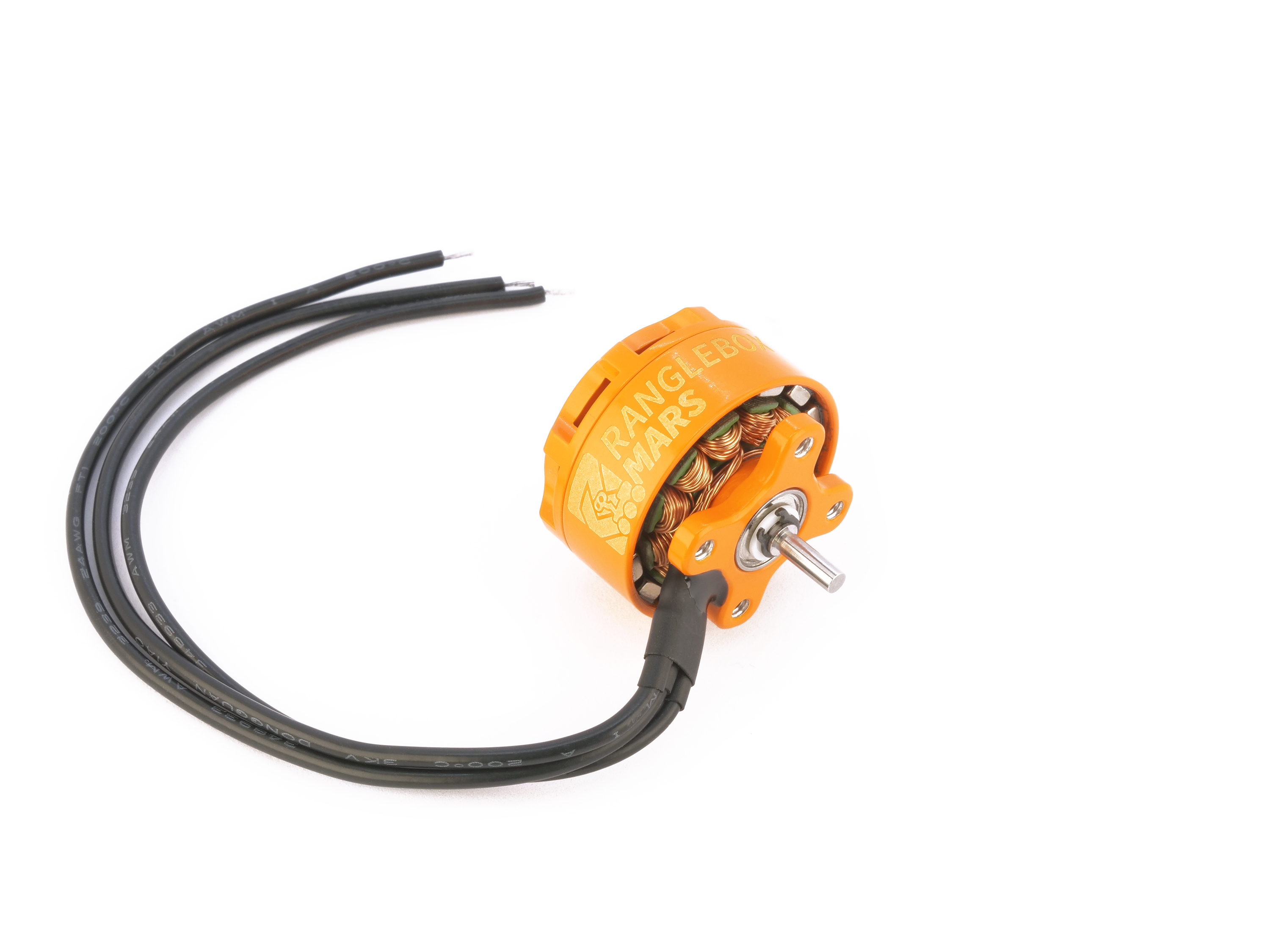

¶ Mars RB1806 2000KV
motor.current_ctl_bwr: 0.03999999910593033
motor.current_max: 10.0
motor.current_ramp: 5000.0
motor.flux_linkage: 0.00042600775486789644
motor.inductance_dq: [6.828102868894348e-06, 6.828102868894348e-06]
motor.mechanical_ratio: 1
motor.resistance: 0.09662981331348419
motor.thermistor_v2k: [0.0, 0.0, 0.0]
motor.voltage_ramp: 20.0
¶ Roxxy C35-36-09 950kv
motor.current_ctl_bwr: 0.03999999910593033
motor.current_max: 10.0
motor.current_ramp: 5000.0
motor.flux_linkage: 0.0009349610772915184
motor.inductance_dq: [5.459212388814194e-06, 5.459212388814194e-06]
motor.mechanical_ratio: 1
motor.resistance: 0.027987055480480194
motor.thermistor_v2k: [0.0, 0.0, 0.0]
motor.voltage_ramp: 20.0
